A PRACTICAL GUIDE TO CURVED WALL DESIGN

Common Mistakes When Designing Curved Walls

Common Mistakes When Designing Curved Walls

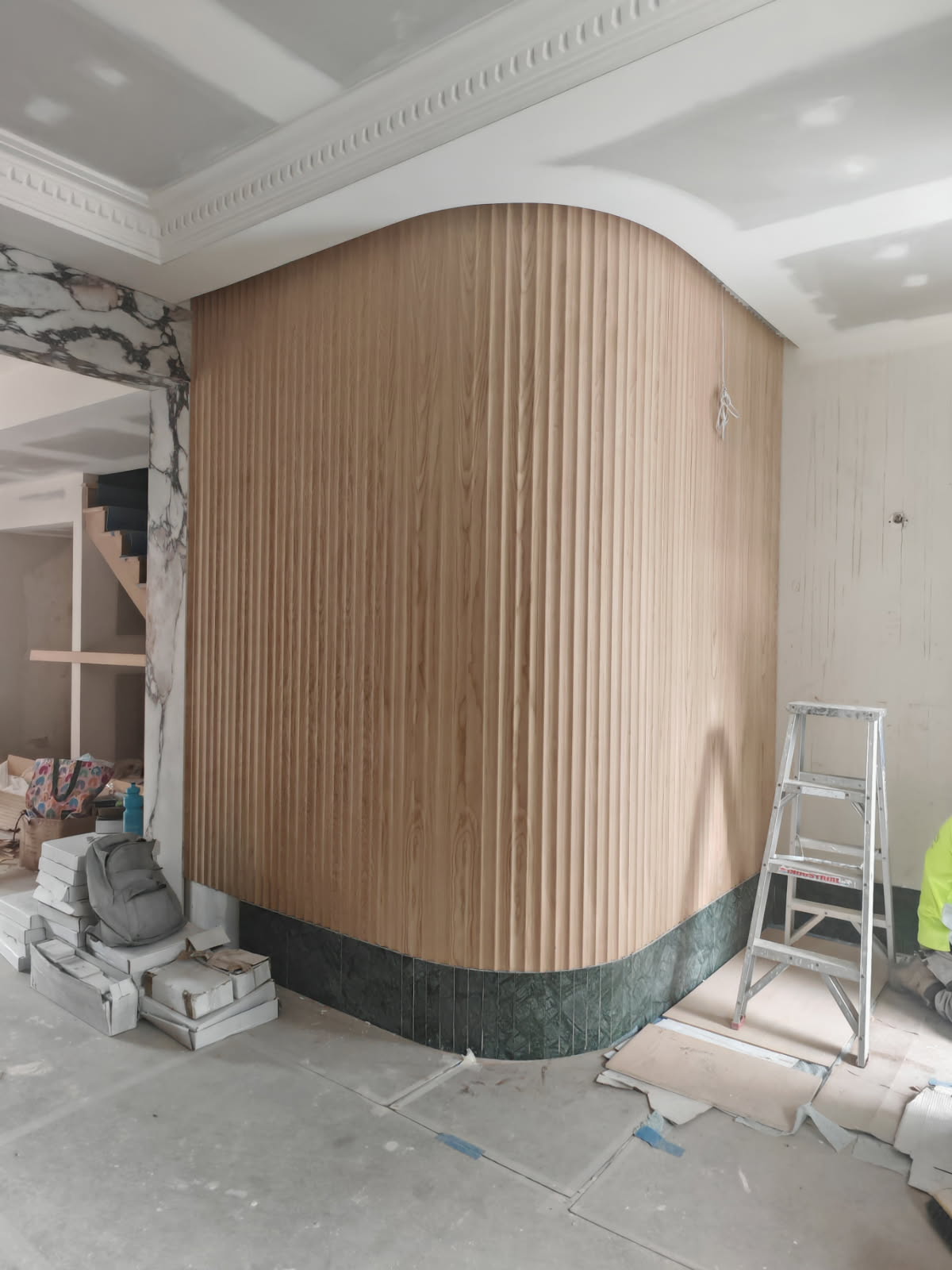

There are no mistakes here! This stunning Oak Scallop 50 install incorporates luxe finishes and concealed lighting to finish this feature wall.

Curved walls have a quiet kind of power. They soften a space, guide movement, and bring a sense of craftsmanship that straight lines rarely achieve. But designing with curves isn't just a creative decision, it's a technical one. And when it's not handled properly, things can go wrong quickly.

From impractical radii to material mismatches, Bendy Bois sees the same issues come up on-site time and time again.

This guide walks through the most common mistakes when designing curved walls and how to approach them with confidence, clarity, and buildability in mind.

1. Designing a Radius That Can't Be Built

One of the most common pitfalls is specifying a radius that looks great on paper but isn't feasible in reality. Tight curves may require excessive force, specialised materials, or complex framing that quickly blows out time and cost. Where it goes wrong:

  • - Radius is tighter than the material can handle
  • - No consideration for bending limits
  • - Framing complexity not accounted for

A better approach: start with the material, not the shape. Flexible MDF and bendable plywood each have practical bending limits. Designing within those constraints ensures the curve is not only beautiful, but achievable.

A good rule of thumb: the tighter the radius, the higher the cost, complexity, and risk.

Creating a seamless transition between flat and curved sections should be planned upfront.
Selecting the finish and the profile are key to achieving the best design outcome.

2. Treating All Materials the Same

One of the biggest misconceptions is that any sheet material can be made to curve. It can't, at least not without compromise. Common mistakes:

  • - Specifying standard MDF for curved applications
  • - Assuming plywood will "just bend"
  • - Ignoring grain direction and behaviour

What to do instead: match material with intent.

  • - BendyWood Flexible MDF for smooth, paint-grade curves
  • - Bendable plywood for structural or layered applications

Choosing the right material early simplifies everything downstream, from detailing to installation.

3. Ignoring Material Thickness in the Design Phase

Thickness plays a bigger role than most expect. Thicker sheets and wider profiles are naturally harder to bend, while thinner sheets and narrow profiles may require layering to achieve strength and durability. Where designs fall short:

  • Thicker and wider profiles specified for tight curves
  • No allowance for multi-layer construction and substrate construction
  • Structural requirements not aligned with geometry

A smarter approach:

  • Use narrow BendyWood profiles for tighter radii
  • Plan your substrate and layers behind the decorative finish to build strength
  • Plan the build-up early, including adhesives and fixing methods

This is where design meets construction, and getting it right upfront avoids costly rework later.

4. Overlooking the Substrate and Framing

A curved wall is only as good as what sits behind it. Even perfectly selected materials will fail if the framing isn't properly designed to support the curve. Common design oversights:

  • - No detail for curved framing
  • - Assuming standard stud layouts will work
  • - Lack of alignment between framing and sheet joins

Best practice:

  • - Design a true curved substrate, not segmented framing
  • - Specify tighter stud spacing
  • - Plan your frame lining and plan this into the finished height
  • - Ensure fixing points are coordinated with panel layout

A clean curve starts with a clean structure.

5. Designing Without Considering Installation

Curved walls require a different installation mindset. They often take longer, require more precision, and involve techniques that differ from flat wall construction. Where things go wrong:

  • - No allowance for install time
  • - Complex shapes that require excessive manipulation
  • - Lack of clarity around build method

A more buildable approach:

  • - Design curves that align with standard panel sizes
  • - Specify materials that reduce install complexity
  • - Consider sequencing, access, and handling

A well-designed curve should simplify installation, not complicate it.

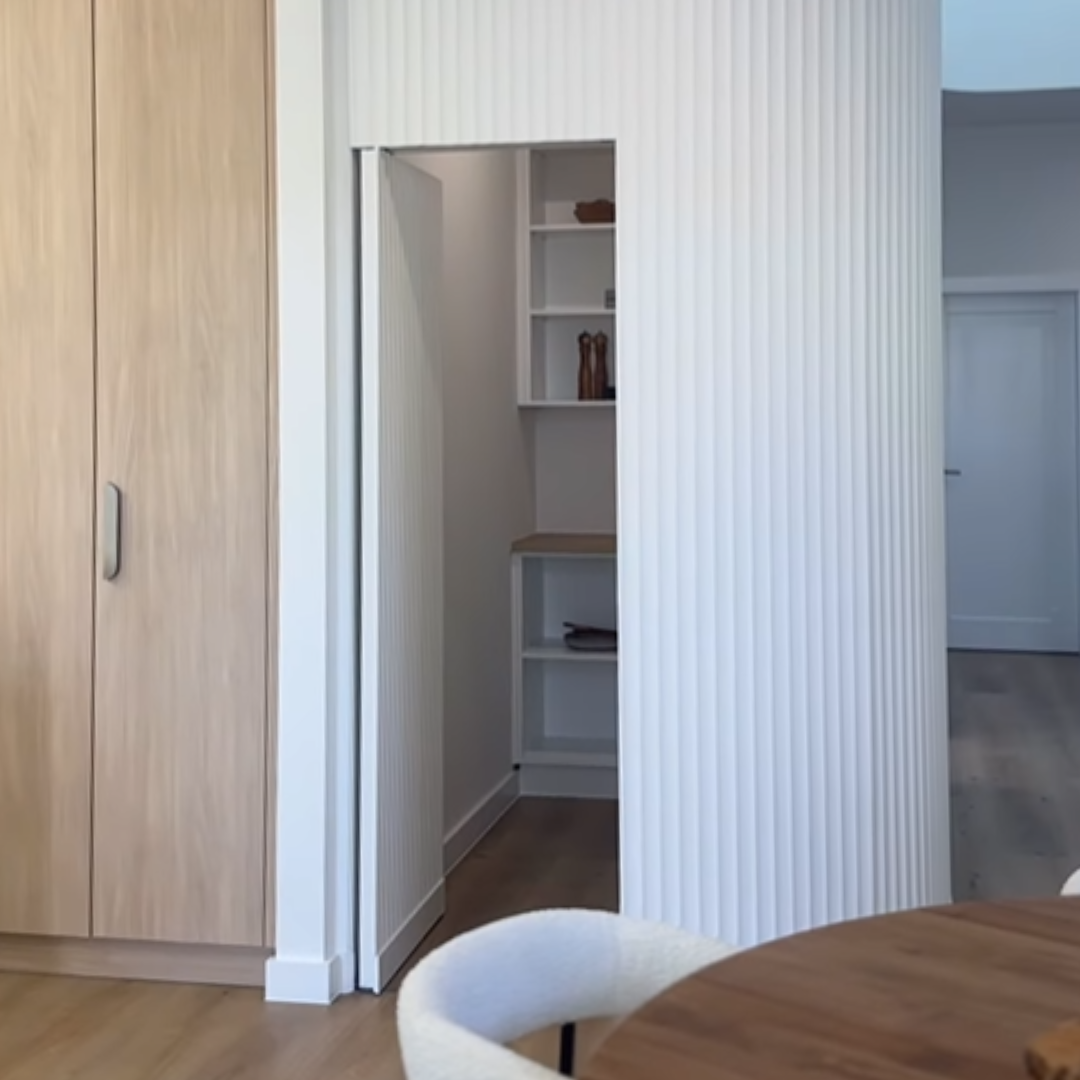

Decorative wall panels installed on interior walls to create textured architectural feature walls

Active Kitchens crafted a feature curved wall in this beautiful kitchen design.

6. Forgetting About Finishes

Curves don't just affect structure. They influence how finishes behave too. Paint, laminates, and veneers all respond differently on a radius.

Typical issues:

  • Cracking in rigid coatings
  • Visible seams on tight curves
  • Adhesion failures

Design considerations:

  • Specify finishes suitable for curved surfaces
  • Plan seam placement early
  • Test finishes on curved samples

The finish is what people see, so it needs to be considered from the start.

7. Not Considering the End Use of the Space

It's easy to focus on form and forget function. Curved walls in high-traffic or commercial environments need to perform, not just look good.

Missed considerations:

  • - Impact resistance
  • - Cleanability and maintenance
  • - Integration with joinery, lighting, or services

A more grounded approach: design with the real world in mind.

  • - Specify durable materials where needed
  • - Consider how the curve interacts with the space
  • - Ensure practical detailing at junctions and transitions

Good design holds up over time, not just at handover.

Bringing It All Together

Curved walls sit at the intersection of design intent and construction reality. When done well, they feel effortless, but behind that simplicity is a series of considered decisions, from radius and material through to framing and finish.

Avoiding these common mistakes isn't about limiting creativity. It's about grounding it. The best curves aren't just drawn beautifully. They're built that way too.

Continue Reading

Explore the BendyWood collection

MDF Bending Radius Guide

How to Install Curved MDF Panels

Curved MDF Panels Australia

Frequently Asked Questions

What's the tightest radius a curved wall can achieve?

It depends on the material. Flexible MDF and bendable plywood each have practical bending limits, and the tighter the radius, the higher the cost, complexity, and risk.

Can standard MDF or plywood be used for curved walls?

Not reliably. Standard sheet materials aren't built to bend, and forcing them risks cracking or structural failure. Flexible MDF or bendable plywood are the safer choice.

Does material thickness affect how tight a curve can be?

Yes. Thicker sheets are harder to bend, while thinner sheets may need to be layered to keep the strength and durability the design needs.

What's the biggest framing mistake on curved walls?

Using segmented, straight-line framing to approximate a curve instead of a true curved substrate. It creates flat spots and misaligned fixing points.

Do finishes behave differently on curved surfaces?

Yes. Paint, laminates, and veneers can crack, show seams, or fail to adhere properly on a tight radius if they aren't specified and tested for curved applications.
